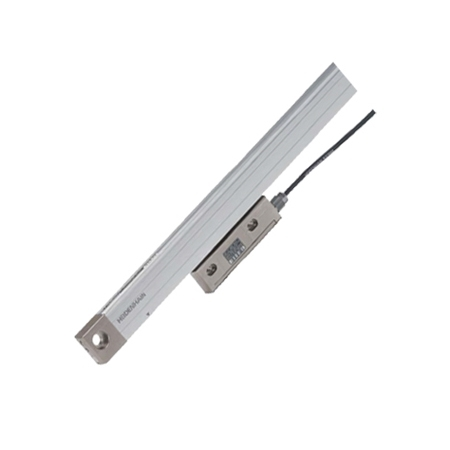

Heidenhain 557647-13 LC483 Absolute Linear Encoder
Have one to sell?
ConditionUsed
1 available
Heidenhain 557647-13 (LC 483) Absolute sealed linear encoder, length 670mm, w/±5.0um Accuracy, 1Vpp Output and 3.6 to 5.25V
Measuring length (670mm)
Accuracy: ±5.0um
Grating period: 20.000um
Measuring step: 10nm
Fasten Type: mounting spar
Output: 1Vpp
Electrical connection: Flange socket, male, 14-pin
Power Requirements: 3.6 to 5.25V
For the Latest Drop-In Replacement – Heidenhain 689681-13 (LC 485)
NOTE: If you using compressed air on the LC483 scanning unit, hookup of air line is different on LC485 – See Mounting-for-Air-on-LC485-versus-LC483
Heidenhain 557647-13 (LC 483) Absolute sealed linear encoder, length 670mm, w/±5.0um Accuracy, 1Vpp Output and 3.6 to 5.25V
Measuring length (670mm)
Accuracy: ±5.0um
Grating period: 20.000um
Measuring step: 10nm
Fasten Type: mounting spar
Output: 1Vpp
Electrical connection: Flange socket, male, 14-pin
Power Requirements: 3.6 to 5.25V
For the Latest Drop-In Replacement – Heidenhain 689681-13 (LC 485)
NOTE: If you using compressed air on the LC483 scanning unit, hookup of air line is different on LC485 – See Mounting-for-Air-on-LC485-versus-LC483
