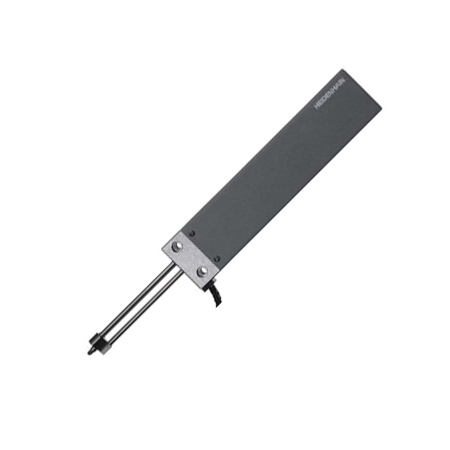

Heidenhain 653246-01 MT101M Metro Length Gauge
Have one to sell?
ConditionUsed
1 available
Heidenhain 653246-01 (MT101M) 100mm Straight Length Gage, plunger movement is by motor, w/1.0um Accuracy, and 11 uApp Output
Travel: 100mm
Plunger movement: by motor
Accuracy: 1.0um
Reference mark: 10mm
Electrical connection: M23 connector, male 9-pin
Output: 11 uApp
Power Requirement: 5V
Protection: IP50
Cable length: 1.5m
The Heidenhain MT101M is compatible with either the Heidenhain ND280 or ND287 display. The ND287 has more features than the ND280.
Heidenhain 653246-01 (MT101M) 100mm Straight Length Gage, plunger movement is by motor, w/1.0um Accuracy, and 11 uApp Output
Travel: 100mm
Plunger movement: by motor
Accuracy: 1.0um
Reference mark: 10mm
Electrical connection: M23 connector, male 9-pin
Output: 11 uApp
Power Requirement: 5V
Protection: IP50
Cable length: 1.5m
The Heidenhain MT101M is compatible with either the Heidenhain ND280 or ND287 display. The ND287 has more features than the ND280.
