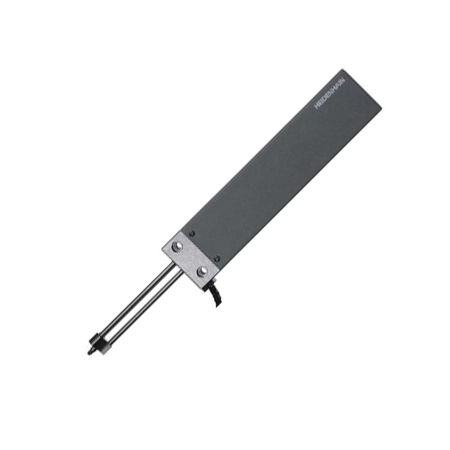

Heidenhain 653248-01 (MT101K) 100mm Straight Length Gage, plunger movement is by gravity, w/1.0um Accuracy, and 11 uApp Output
Travel: 100mm
Plunger movement: by gravity
Accuracy: 1.0um
Reference mark: 10mm
Electrical connection: 15-pin D-Sub connector
Output: 11 uApp
Power Requirement: 5V
Protection: IP50
Cable length: 1.5m
The Heidenhain MT101K is compatible with either the Heidenhain ND280 or ND287 display. The ND287 has more features than the ND280.
Heidenhain 653248-01 (MT101K) 100mm Straight Length Gage, plunger movement is by gravity, w/1.0um Accuracy, and 11 uApp Output
Travel: 100mm
Plunger movement: by gravity
Accuracy: 1.0um
Reference mark: 10mm
Electrical connection: 15-pin D-Sub connector
Output: 11 uApp
Power Requirement: 5V
Protection: IP50
Cable length: 1.5m
The Heidenhain MT101K is compatible with either the Heidenhain ND280 or ND287 display. The ND287 has more features than the ND280.
