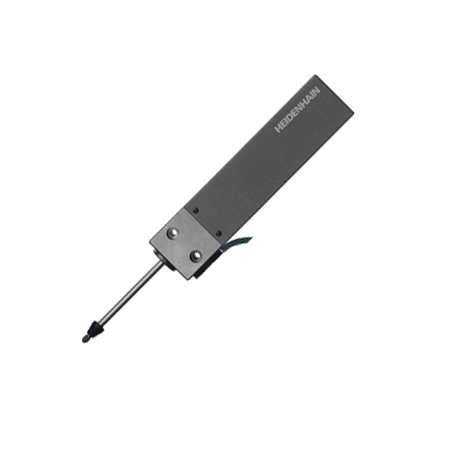

Heidenhain 359341-04 (MT 60K) 60mm Straight Gauge probe with a plunger extended by gravity, 0.5um Accuracy and 11uApp Output
Travel: 60mm
Plunger movement: extended by gravity
Reference mark: 30.0mm
Output: 11uApp
Accuracy: 0.5um
Protection: IP50
Electrical connection: male 9-pin
Cable Length: 1.5 meters
See Heidenhain *Granite Stands and *Displays that are available for the MT 60K.
