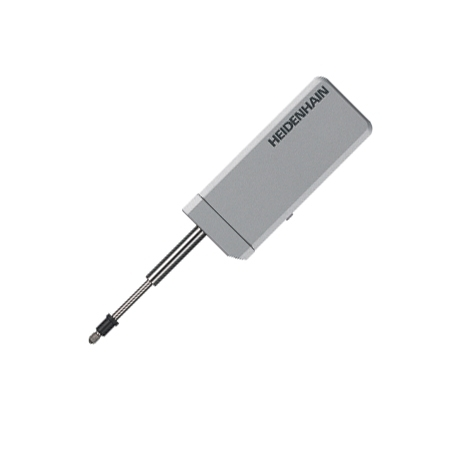

Heidenhain 331667-03 (MT 2571), 25mm Straight Incremental Length Gauge, plunger actuation extended by spring force, w/ (0.2um) Accuracy, and TTL w/5-fold interpolatin
Travel: 25mm
Plunger actuation: extended by spring force
Reference mark: 1.7mm
Accuracy: 0.2um
Output: TTL w/5-fold interpolation
Power supply: 5 ± 10%
Max frequency: 200 kHz
Protection: IP50
Signal period: 2.0um
Cable length: 1.5m
Heidenhain 331667-03 (MT 2571), 25mm Straight Incremental Length Gauge, plunger actuation extended by spring force, w/ (0.2um) Accuracy, and TTL w/5-fold interpolatin
Travel: 25mm
Plunger actuation: extended by spring force
Reference mark: 1.7mm
Accuracy: 0.2um
Output: TTL w/5-fold interpolation
Power supply: 5 ± 10%
Max frequency: 200 kHz
Protection: IP50
Signal period: 2.0um
Cable length: 1.5m
