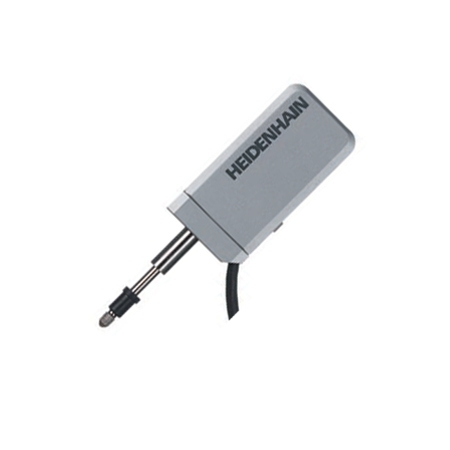

Heidenhain 329350-02 (MT 1201) 12mm Straight Length Gauge, plunger actuation by spring force, 0.2um Accuracy, and 11uApp Output
Travel: 12mm
Accuracy: 0.2um
Plunger Actuation: Spring Force
Type of guide: ball guide
Reference mark: 1.7mm
Electrical connection: 9-pin male
Output: 11uApp
Grating period: 4.0um
Power supply: 5V -5%
Protection: IP50
Cable length: 1.5m
Heidenhain 329350-02 (MT 1201) 12mm Straight Length Gauge, plunger actuation by spring force, 0.2um Accuracy, and 11uApp Output
Travel: 12mm
Accuracy: 0.2um
Plunger Actuation: Spring Force
Type of guide: ball guide
Reference mark: 1.7mm
Electrical connection: 9-pin male
Output: 11uApp
Grating period: 4.0um
Power supply: 5V -5%
Protection: IP50
Cable length: 1.5m
