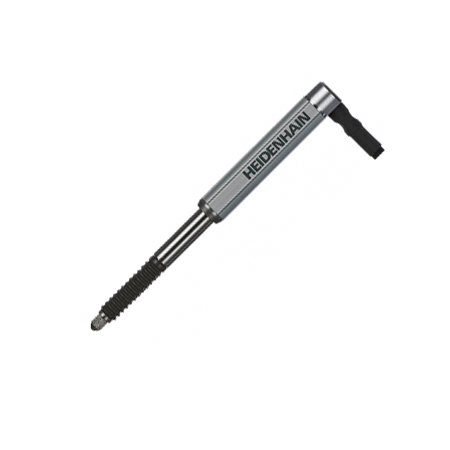

Heidenhain 383963-08 (ST 1278) Specto 12mm Right Angle Digital Probe w/1.0um Accuracy, Spring Push and TTL 10-fold interpolation Output
Travel: 12mm
Cable Outlet: Right Angle
Plunger actuation: extended by spring force
Type of guide: ball guide
Reference mark: 5mm
Electrical connection: 15-pin
TTL Output w/10-fold interpolation
Max. Frequency: 50 kHz
Accuracy: 1.0um
Signal period: 2.000um
Protection: IP64
Power requirements: 5V ± 10%
Max. Frequency: 25 kHz
Cable Length: 1.5 meters
