Heidenhain CT 6002 Absolute Length Gauge 329352-02
Have one to sell?
ConditionUsed
1 available

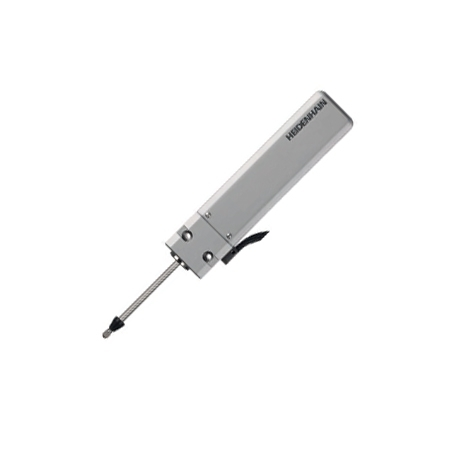

Heidenhain 329352-02 (CT 6002) 60mm Straight Gauge probe with a plunger extended by gravity, 0.1um Accuracy, and 11uApp Output
Travel: 60mm
Plunger movement: extended by gravity
Reference mark: 1.7mm
Output: 11uApp
Accuracy: 0.1um
Protection: IP50
Electrical connection: male 9-pin Connector
Protection: IP50
Cable Length: 1.5 meters
Please check out the Heidenhain *Granite Stand and *Displays for the CT Series Gauges (*see Downloads)
Heidenhain 329352-02 (CT 6002) 60mm Straight Gauge probe with a plunger extended by gravity, 0.1um Accuracy, and 11uApp Output
Travel: 60mm
Plunger movement: extended by gravity
Reference mark: 1.7mm
Output: 11uApp
Accuracy: 0.1um
Protection: IP50
Electrical connection: male 9-pin Connector
Protection: IP50
Cable Length: 1.5 meters
Please check out the Heidenhain *Granite Stand and *Displays for the CT Series Gauges (*see Downloads)
