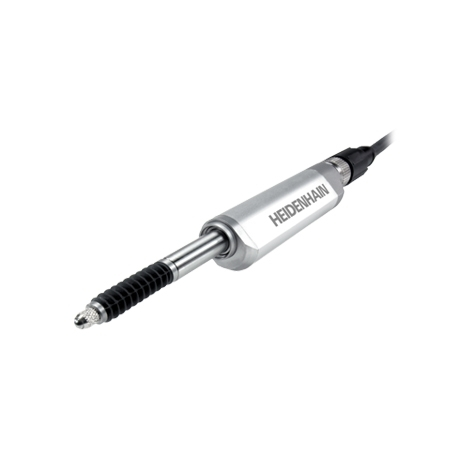

Heidenhain 680984-02 (AT 3017) Absolute length gauge straight 30mm, accuracy 2.0uM, power requirements 3.6V to 14V
Travel: 12mm
Cable Outlet: Straight
Plunger actuation: extended by compressed air
Type of guide: sliding guide
Electrical connection: 8-pin male
Data Interface: Synchronous serial EnDat 2.2 without incremental signals
Measuring step: 368 nm
Accuracy: 2.0Um
Protection: IP64/IP67 – without/with sealing air
Power requirements: 3.6V to 14V
Heidenhain 680984-02 (AT 3017) Absolute length gauge straight 30mm, accuracy 2.0uM, power requirements 3.6V to 14V
Travel: 12mm
Cable Outlet: Straight
Plunger actuation: extended by compressed air
Type of guide: sliding guide
Electrical connection: 8-pin male
Data Interface: Synchronous serial EnDat 2.2 without incremental signals
Measuring step: 368 nm
Accuracy: 2.0Um
Protection: IP64/IP67 – without/with sealing air
Power requirements: 3.6V to 14V
