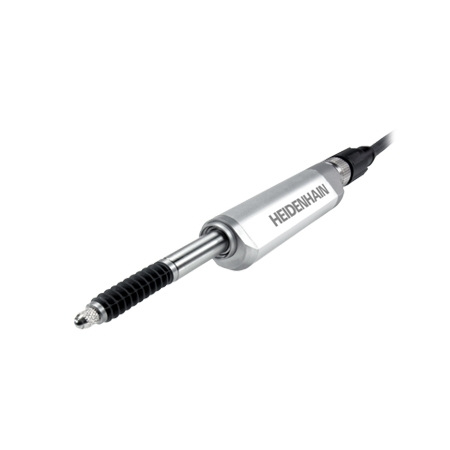

Heidenhain 680983-03 (AT 1218) Absolute length gauge straight 12mm, accuracy ±1.0um, power requirements 3.6V to 14V
Travel: 12mm
Cable Outlet: Straight
Plunger actuation: extended by spring force
Type of guide: sliding guide
Electrical connection: 8-pin male
Data Interface: Synchronous serial EnDat 2.2 without incremental signals
Measuring step: 23 nm
Accuracy: ±1.0um
Protection: IP67
Power requirements: 3.6V to 14V
Heidenhain 680983-03 (AT 1218) Absolute length gauge straight 12mm, accuracy ±1.0um, power requirements 3.6V to 14V
Travel: 12mm
Cable Outlet: Straight
Plunger actuation: extended by spring force
Type of guide: sliding guide
Electrical connection: 8-pin male
Data Interface: Synchronous serial EnDat 2.2 without incremental signals
Measuring step: 23 nm
Accuracy: ±1.0um
Protection: IP67
Power requirements: 3.6V to 14V
