Equipment
Boring Mills
Boring Mills, BORING MILL, HORZ, TABLE TYPE, CNC

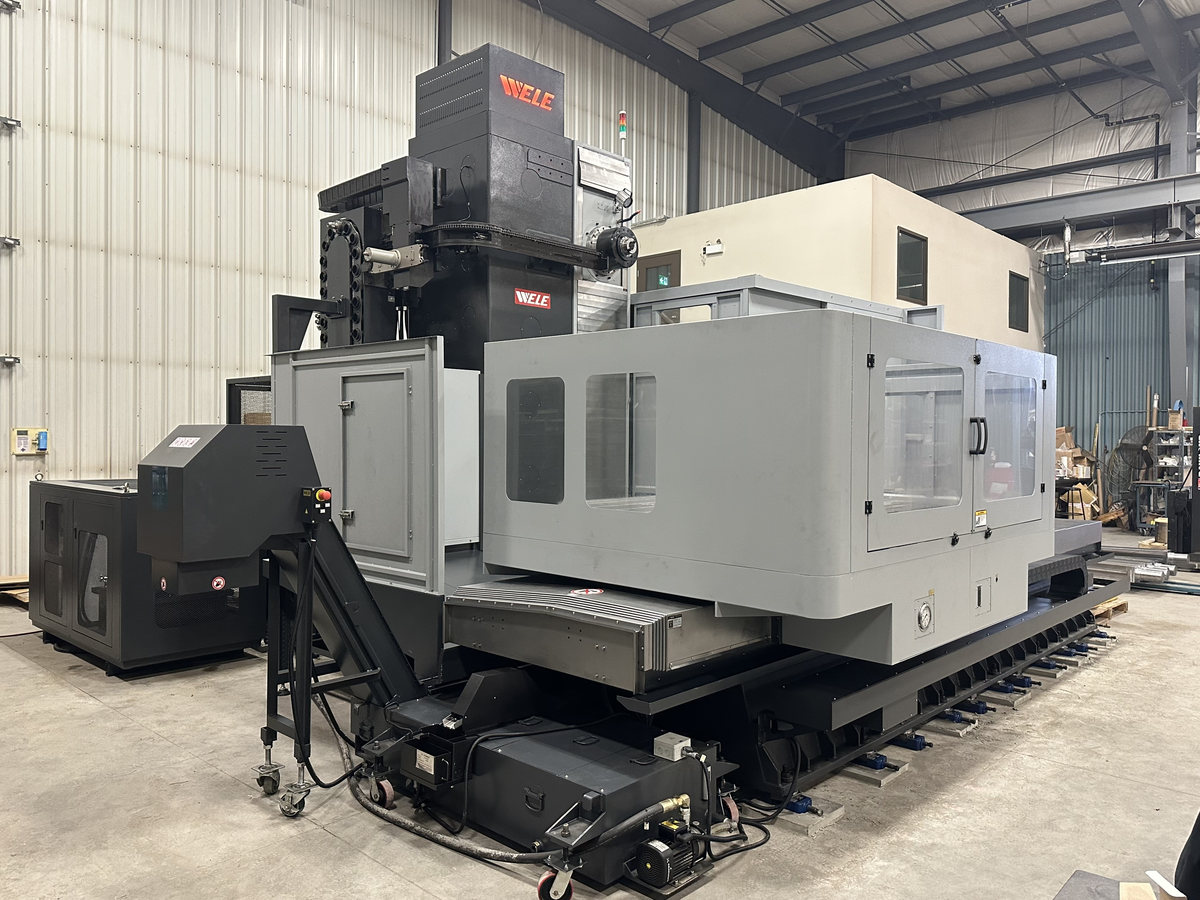

WELE 5.12" CNC HORIZONTAL TABLE TYPE BORING MILL

WELE 5.12" CNC HORIZONTAL TABLE TYPE BORING MILL

Have one to sell?
905-876-0890
sales@walkermachinery.com
ConditionNew
1 available
Have one to sell?

Overview

Type:
Boring Mills, BORING MILL, HORZ, TABLE TYPE, CNC
Manufacturer:
WELE
Model:
HB1620-130
Condition:
New - In-Stock
Year:
2024
Stock #:
020224
Status:
For Sale

Description

Nov 2024 delivery

Heidenhain TNC 640 control
60 ATC
59" Z-axis travel
Linear Roller Guideways
Coolant through spindle
20ton Hydro-Static Bearing designed rotary table
Heidenhain Linear scales on X/Y/Z axes
Working table side sheet metal & Operator side sheet metal
Chip auger & lift up Chip Conveyor
400v/3/60 electrics
CSA Electrics

Spindle Size5.12"130.05 mm
X-Horiz Tvl of Table118"2,997.2 mm
Y-Vert Tvl of Head82.7"2,100.6 mm
Power50 hp37.3 kW
RPM2,500 RPM2,500 RPM
Table-W78"1,981.2 mm
Table-L63"1,600.2 mm
Spindle Tvl.27.6"701.04 mm
ControlCNC (Heidenhain TNC 640)CNC (Heidenhain TNC 640)
Dimensions291"x264"x175"291"x264"x175"
Weight80,000lbs80,000lbs
