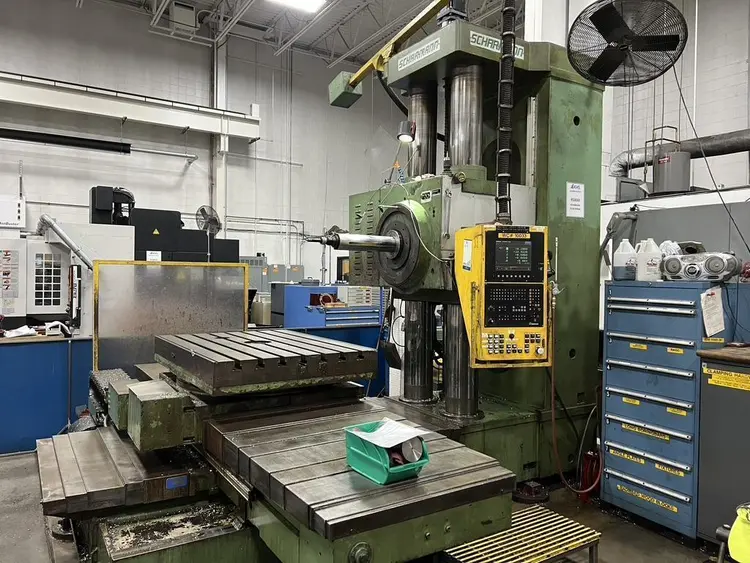

SCHARMANN 4.7" CNC Table Type Horizontal Boring Mill
Have one to sell?
ConditionUsed
1 available
Machine new in 1975 with CNC Retrofit in 1996
Z-axis travel: 48"
Heidenhain 415 CNC control
Built-in rotary table with 360,000 degree "programable" positioning
Ballscrews on X/Y/Z axes
Heidenhain scales on X/Y/Z axes
Power draw bar
Coolant
Various toolholders
Right Angle Head attachment
Machine new in 1975 with CNC Retrofit in 1996
Z-axis travel: 48"
Heidenhain 415 CNC control
Built-in rotary table with 360,000 degree "programable" positioning
Ballscrews on X/Y/Z axes
Heidenhain scales on X/Y/Z axes
Power draw bar
Coolant
Various toolholders
Right Angle Head attachment
Imperial
| Spindle Size | 4.7" |
| X-Horiz Tvl of Table | 79" |
| Y-Vert Tvl of Head | 55" |
| Power | 30 hp |
| RPM | 0 RPM |
| Table-W | 39" |
| Table-L | 55" |
| Spindle Tvl. | 24" |
| Control | CNC (Heidenhain TNC 415B control) |
| Weight | 50,000lbs |
